Harvest Agri Ltd

Silo CSI1 Basic Module

Silo CSI1 Basic Module

PRICE ON REQUEST

➜ Click here to request pricing

Alternatively, please contact us on jingle@harvestagri.co.uk or +44 7984 018400 for enquiries or assistance.

View full details

About this product

The Silo CSI1 Basic Module is the ideal storage solution for grain and other free-flowing bulk materials. This robust silo combines durability with a space-saving design, making it perfect for both agricultural and industrial applications.

The Silo CSI1 is constructed from high-quality galvanized sheet steel, ensuring excellent corrosion resistance and longevity. With its maximum load capacity of 3,000 kg, it offers reliable performance even under demanding conditions.

One of the standout features of the Silo CSI1 is its modular design. You can easily adjust the storage capacity up to 3.6 m³ by adding extensions or a lid. This flexibility allows you to tailor the silo to your specific needs, whether you are storing grain, animal feed, pellets, or granules.

  • Compact size: With a side length of only 123 cm, the square design of this silo is perfect for maximising space in indoor environments.
  • Installation-ready: The base of the silo is prepared for weighing technology, allowing you to add a scale for precise monitoring of fill levels.

The Silo CSI1 is a reliable, adaptable solution for your storage needs. Delivered disassembled on a pallet, this silo is easy to transport and set up, ensuring you can get started quickly. Made in Austria, it adheres to high-quality manufacturing standards.

Click here to request pricing
More Information

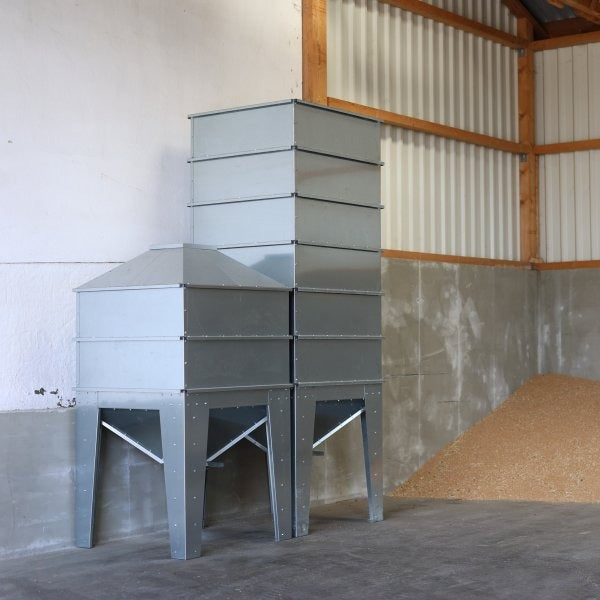

Flexible silo construction for individual storage requirements

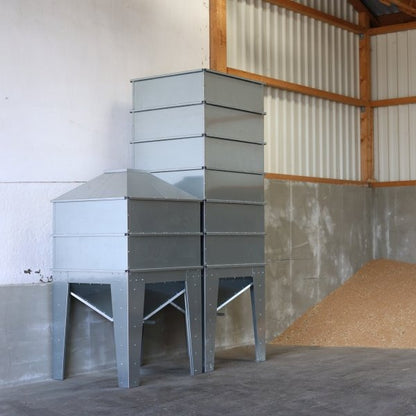

The CSI1 silo impresses with its modular design, offering maximum flexibility. Adapt the capacity to your needs with up to six extensions and a lid – for a storage capacity of up to 3.6 m³.

Robust construction made of galvanized steel

Made from high-quality, galvanized sheet steel, the silo is corrosion-resistant and durable. With a maximum load capacity of 3,000 kg, it offers a reliable solution for demanding agricultural applications.

Space-saving design for indoor use

The square design with a side length of only 123 cm allows for optimal space utilization. This compact design makes the silo particularly suitable for interiors with limited space.

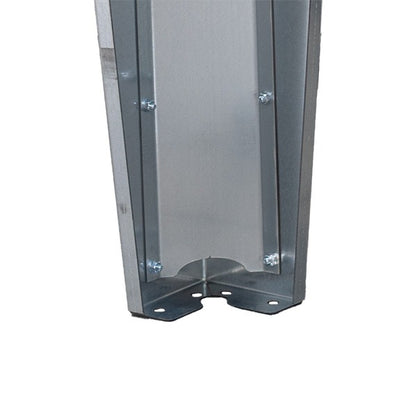

Prepared for the installation of weighing technology

The feet are prepared for the installation of weighing equipment. With the retrofittable scale, you always have a precise overview of the fill level of your silo.

Specifications

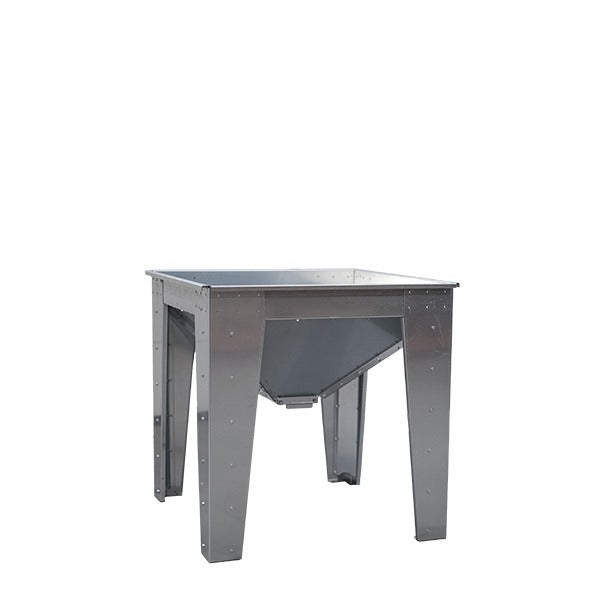

Silo basic module:

• All parts made of galvanized sheet steel

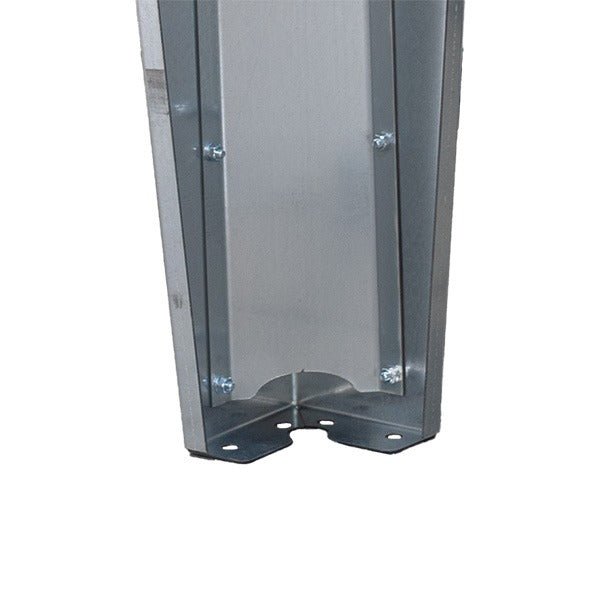

• 4 feet with floor mounting options
• Prepared for the installation of weighing equipment

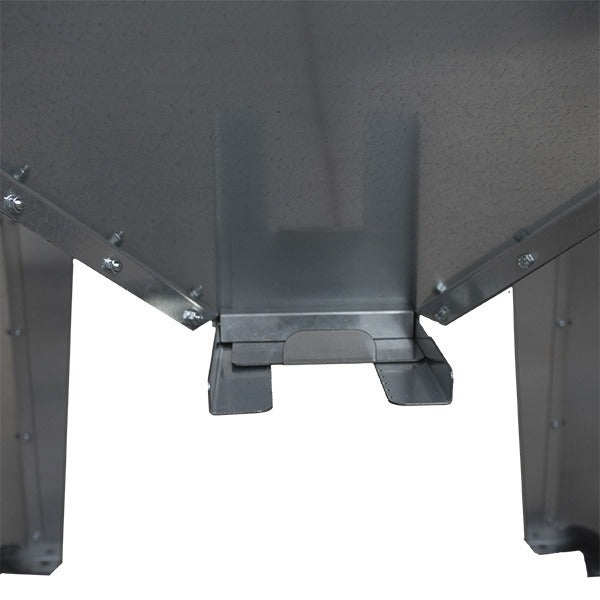

• Discharge hopper consisting of 4 side panels
• Hopper wall inclination 45 degrees

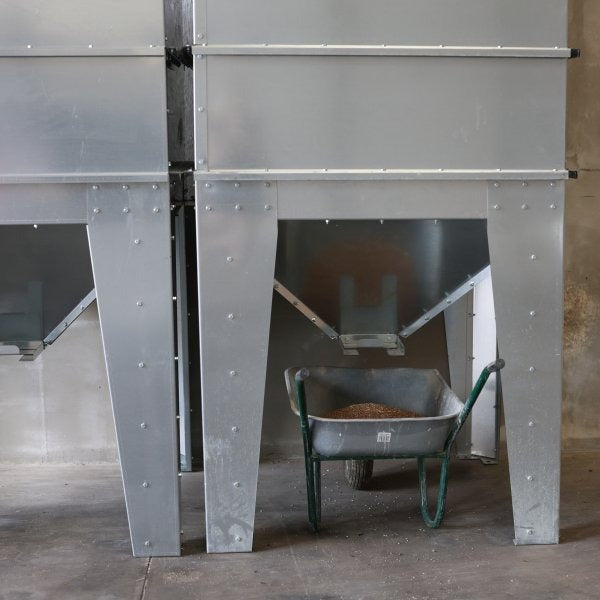

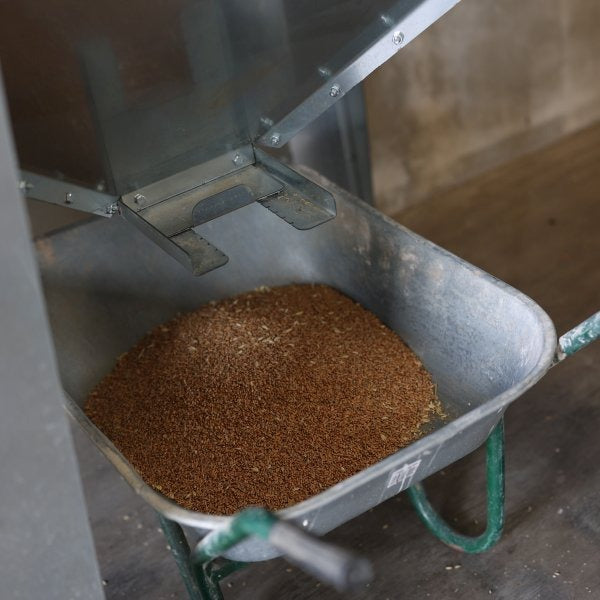

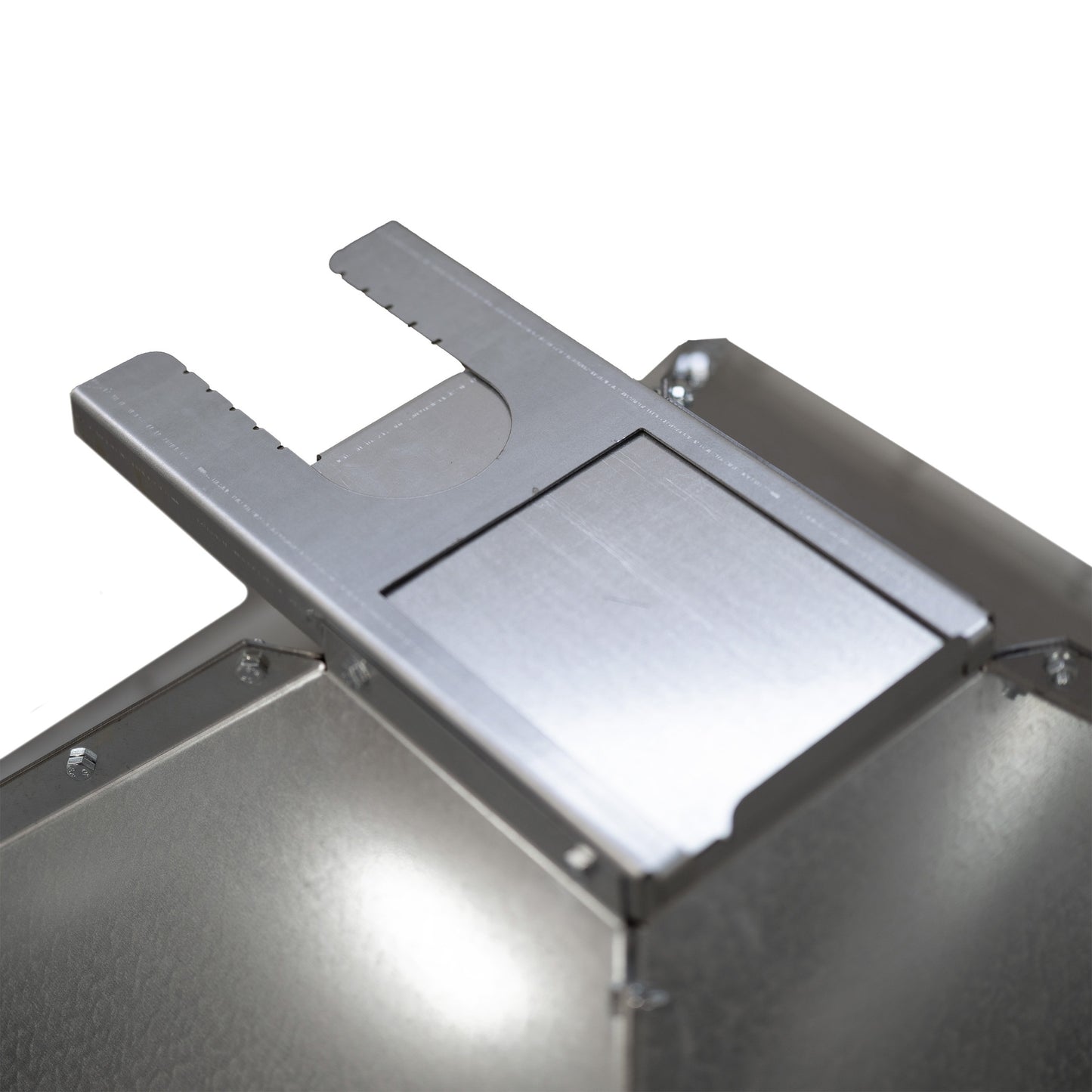

• Discharge slide with opening up to 16 x 18 cm
• Ground clearance 59 cm (without weighing equipment)
• Filling volume 0.35 m³
• Dimensions 123 x 123 x 121 cm (L x W x H)
• Weight approx. 93 kg

Total height (excluding weighing technology) and fill volume:

• Base module: Height 1.21 m, volume 0.35 m³
• with 1 extension: Height 1.59 m, volume 0.85 m³
• with 2 extensions: Height 1.97 m, volume 1.35 m³
• with 3 extensions: Height 2.35 m, volume 1.85 m³
• with 4 extensions: Height 2.72 m, volume 2.35 m³
• with 5 extensions: Height 3.11 m, volume 2.85 m³
• with 6 extensions: Height 3.49 m, volume 3.35 m³
• Lid: additional height 0.34 m, additional volume 0.25 m³

FAQs

How long does the assembly take?
Depending on the size of the silo, assembly can be accomplished by 2 people in one to two hours.

What tools are required for assembly?

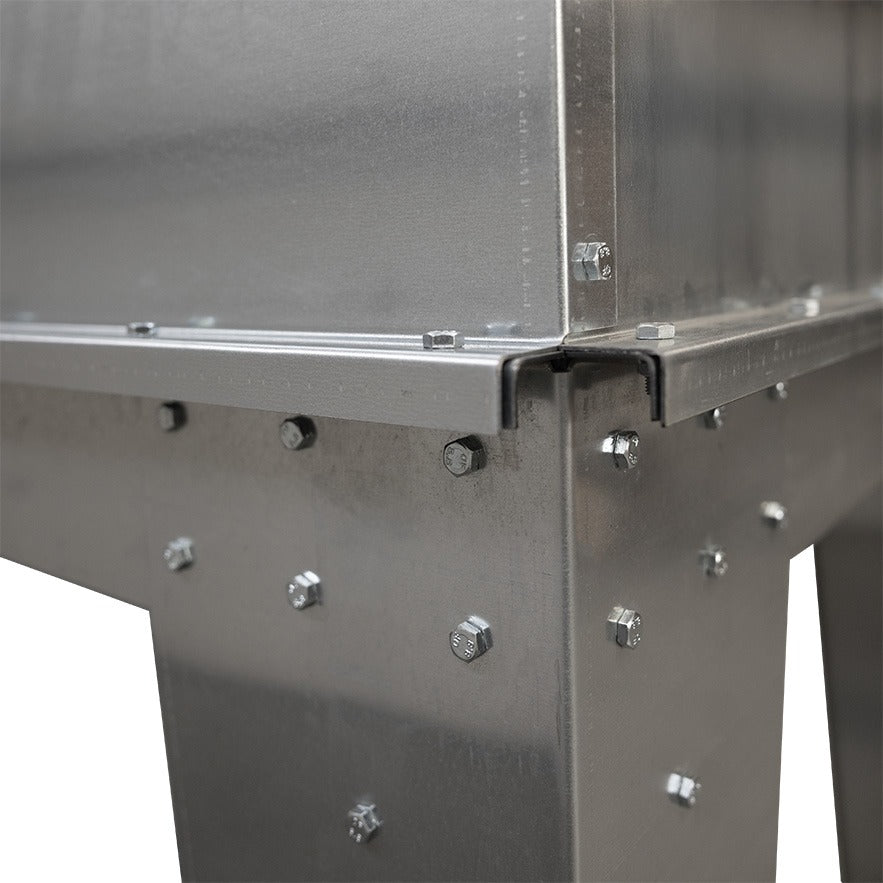

The entire silo is bolted together with M8x16 screws. Two 13 mm wrenches are sufficient. Ideally, a ratchet or a small cordless impact wrench with a socket should be used.

Can the silo be expanded later?
Yes, additional extension frames can be purchased and installed at any time. If necessary, the lid must be removed and replaced on top.

Does the silo need to be anchored to the ground?
It wouldn't be necessary for the silo itself. However, for safety reasons, it is mandatory to anchor silos firmly to the ground.

Are mounting screws for anchoring to the ground included?
No, these are individual and must be obtained locally.

How is the silo filled?
The silo can be filled using any conveying technology. The filling opening on the lid can be removed without tools.

Does the silo have a filling pipe or a vent pipe?
No, not at the moment.

Which weighing technology is best suited for the silo?
The Agris weighing modules should ideally be used for the CSI1. They are designed for mounting on the silo base, can be bolted to the floor, and offer the best value for money due to their high accuracy.
