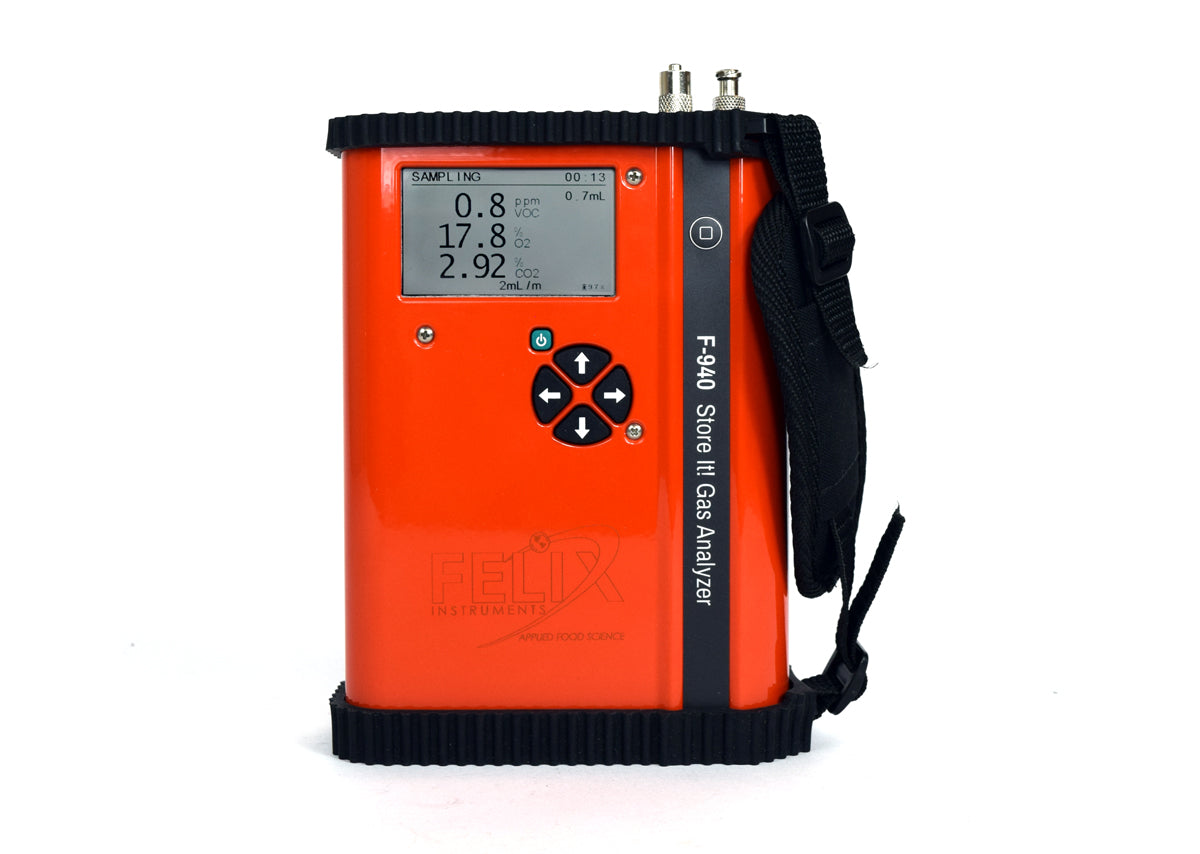

FELIX F-940 Store it! Gas analyser

FELIX F-940 Store it! Gas analyser

£3,978.74 GBP
£3,978.74 GBP
Sale Sold out
Price shown excludes VAT. Shipping calculated at checkout.

Customers based outside of the UK, please contact us directly for assistance: jingle@harvestagri.co.uk or +44 7984 018400
  • American Express
  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
View full details

About this product

The F-940 Store It! Gas Analyzer provides rapid and precise measurements of ethylene, CO2 and O2?The Store It! was designed for Quality Assurance staff to increase shelf-life and prevent spoilage by monitoring ripening gases throughout the storage process. The Store It! features an intuitive user interface, making it simple to operate right out of the box. Its lightweight, handheld design enables users to rely on the Store It! at all stages of storage along the supply chain. A built-in data logger stores thousands of data points and conveniently communicates data through USB or Bluetooth onto a PC or tablet for later analysis. Harvest Agri Ltd is the UK distributor for Felix Instruments of USA and we will be happy to provide more details, answer queries and provide service.

More Information

Increase shelf life and prevent spoilage

The FELIX F-940 Store It! is a rugged handheld gas analyser that measures ethylene (C2H4), carbon dioxide (CO2) and oxygen (O2). It helps you monitor ripening gases through storage, so you can catch problems early and keep produce in better condition for longer. It has an intuitive interface, so it's simple to use straight out of the box.

Key features and benefits

  • Three gases in one handheld unit: ethylene, CO2 and O2.
  • High resolution ethylene measurement from 0 to 10 ppm.
  • Rapid measurement: CO2 and O2 readings in under 10 seconds.
  • Two sampling modes: choose headspace (trigger) sampling or continuous sampling, depending on the job.
  • Backlit LCD screen: easy to read, even in dimly lit stores.
  • Lightweight and heavy duty: a powder-coated aluminium enclosure, individually machined in the USA, weighing 0.95 kg.
  • All-day battery life: 8.5 hours per charge, with rechargeable replacement batteries included.
  • Automatic data capture: readings are saved every second, so you never lose a data point.
  • Built-in data logging: a removable 16 GB SD card stores your records.
  • Easy data transfer: via SD card and wired connection, for review and analysis on a PC.
  • Five data points with every measurement: gas concentrations, date and time, relative humidity and GPS location.
  • Wide operating range: reliable readings from 0°C to 50°C and 0 to 90% non-condensing humidity.
  • User-replaceable ethylene and oxygen sensors.
  • Water resistant (not waterproof): fine in light rain, but keep it out of heavy rain and never use it underwater.

Best practice

  • Use tubing that doesn't outgas, which could interfere with readings. Viton and Teflon work well.
  • Do an offset calibration weekly, and span calibrations on a schedule (see Specifications).
  • For continuous measurement in a sealed environment, use the optional Dynamic Sampling Kit.

Your UK distributor

Harvest Agri Ltd is the UK distributor for Felix Instruments of the USA, and will happily provide more details, answer queries and provide service.

Specifications

General

  • Gases measured: ethylene (C2H4), carbon dioxide (CO2), oxygen (O2)
  • Sampling flow rate: 70 mL/min
  • Total sampling time: 30 seconds
  • Data saving: automatic, at 1 second intervals
  • Display: backlit transflective LCD
  • Operating environment: 0°C to 50°C, 0 to 90% non-condensing humidity
  • Operating atmospheric pressure: 500 to 1200 mbar
  • Dimensions: 18 cm x 13.5 cm x 5.5 cm
  • Weight: 0.95 kg
  • Enclosure: powder-coated aluminium
  • Power: removable rechargeable lithium-ion battery, 8.5 hours of battery life
  • Data storage: removable 16 GB SD card
  • Data interface: USB and SD card (see the check list below on Bluetooth and Wi-Fi)
  • Recorded with each measurement: C2H4, CO2 and O2 concentrations, date, time, RH, GPS location

Ethylene (C2H4)

  • Sensor: electrochemical, user replaceable, 2 year lifetime
  • Range: 0 to 10 ppm
  • Resolution: 0.01 ppm
  • Accuracy: trigger mode 0.15 ppm absolute, 5% relative. Continuous mode 0.03 ppm absolute, 5% relative.
  • Lower detection limit: 0.15 ppm in trigger mode, 0.03 ppm in continuous mode
  • Response time: 30 seconds in trigger mode, 70 seconds in continuous mode
  • Calibration: offset weekly, span every 3 months

Carbon dioxide (CO2)

  • Sensor: infrared (pyroelectric detector), not user replaceable
  • Range: 0 to 100%
  • Resolution: 0.01%
  • Accuracy: trigger mode 0.5% absolute, 3% relative. Continuous mode 0.01% absolute, 3% relative.
  • Lower detection limit: 0.5% in trigger mode, 0.01% in continuous mode
  • Response time: 12 seconds in trigger mode, 6 seconds in continuous mode
  • Lifetime: more than 15 years in trigger mode, 5 years in continuous mode
  • Calibration: offset weekly, span every 12 months

Oxygen (O2)

  • Sensor: electrochemical, user replaceable, 2 year lifetime
  • Range: 0 to 100%
  • Resolution: 0.1%
  • Accuracy: trigger mode 0.3% absolute, 2% relative. Continuous mode 0.1% absolute, 2% relative.
  • Lower detection limit: 0.3% in trigger mode, 0.1% in continuous mode
  • Response time: 12 seconds
  • Calibration: offset weekly, span every 6 months

Warranty

  • 12 months from the point of sale. It covers repair or replacement of defective parts, but not wear and tear, neglect, misuse, accident or unauthorised repair.

Optional accessories

  • F-900DK Dynamic Sampling Kit: for continuous measurement in closed environments. It includes a 2 L acrylic chamber (14 cm diameter, 12 cm deep), a wand attachment and a battery pack for the chamber fans. An 8 L chamber (24 cm diameter, 17 cm deep) is also available.
  • 9XX BE Battery Eliminator: runs the analyser on AC power.
Application

Controlled atmosphere stores

Monitor ethylene mitigation and keep the right balance of gases in controlled atmosphere environments.

Ripening rooms

Control ripening precisely, including citrus degreening and ripening of other commodities.

Modified atmosphere packaging (MAP)

Quality assurance checks on packing lines, in laboratories, in import and export surveys, and in distribution and retail centres.

Who uses it

  • Quality assurance staff in stores and packhouses
  • Growers and storage operators monitoring stock through the season
  • Researchers and consultants studying post-harvest handling

Typical uses

  • Check ethylene levels to catch ripening and spoilage risks early
  • Verify CO2 and O2 levels in stores and sealed rooms
  • Spot-check packs, crates or containers using headspace sampling
  • Log readings over time, with GPS and humidity, to support quality records
