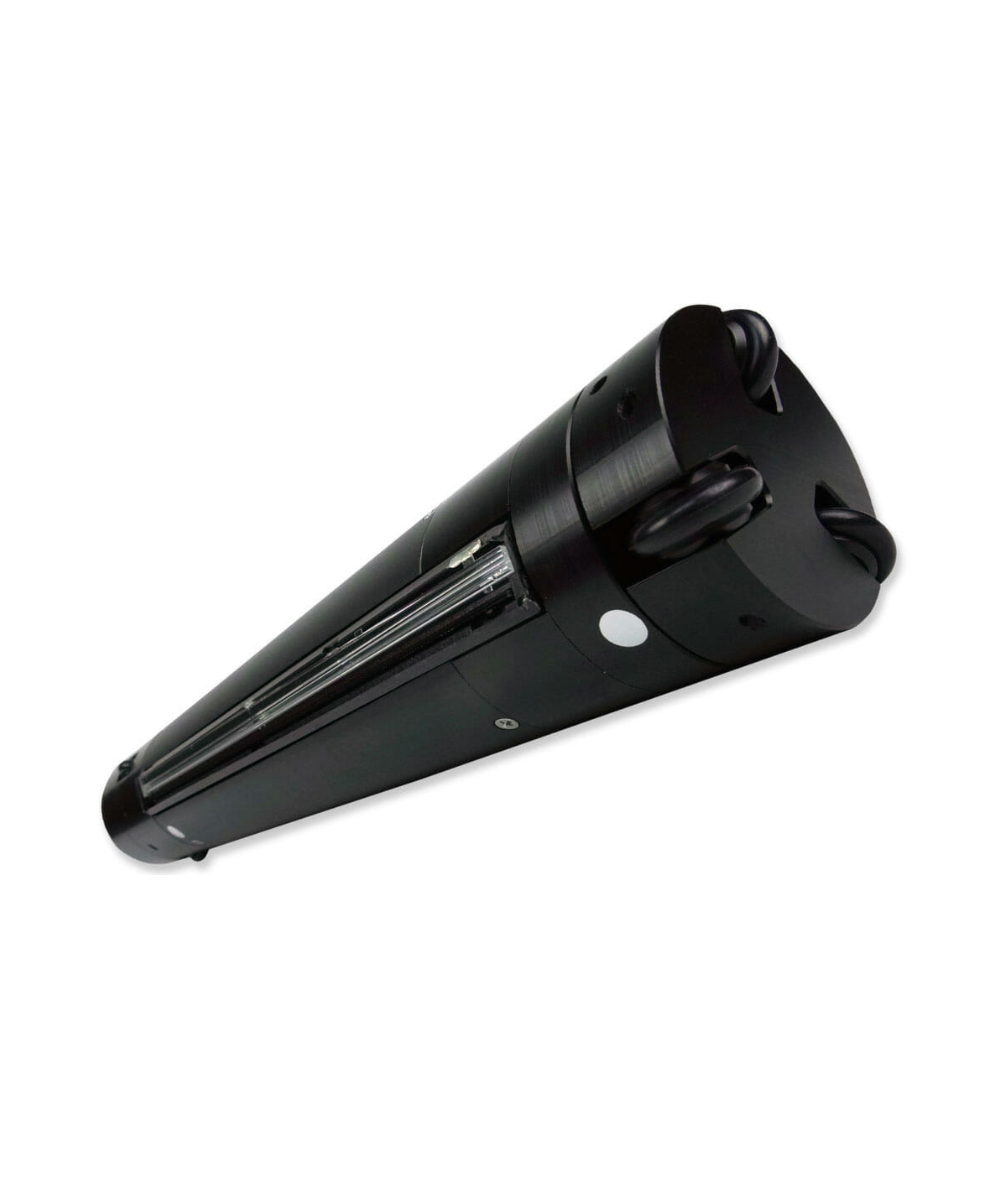

CI-600 CID BioScience Digital Root Scanning and Imaging System

What does the CI-600 Digital Root Scanning and Imaging System do?
The CI-600 system captures high-resolution, non-destructive images of plant roots in their natural soil environment. It allows researchers to study root morphology, growth patterns, and interactions with the soil over time, providing valuable insights into plant health and development.

How does the CI-600 capture root images?

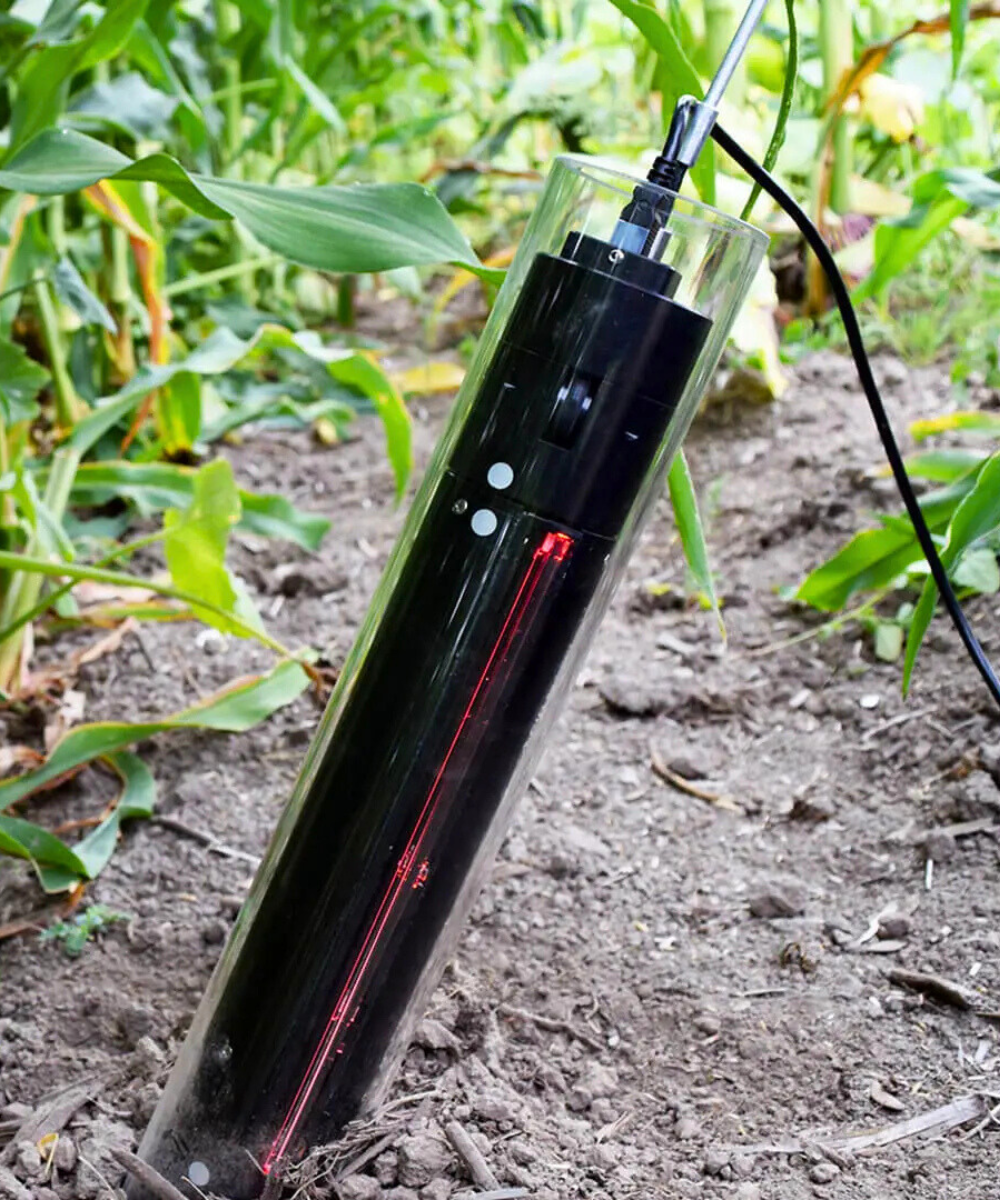

The CI-600 is inserted into clear root observation tubes installed in the soil. The scanner rotates inside the tube to capture a full 360-degree image of the roots in situ, providing a comprehensive view of the root system without disturbing the plant.

Can I use the CI-600 in the field?

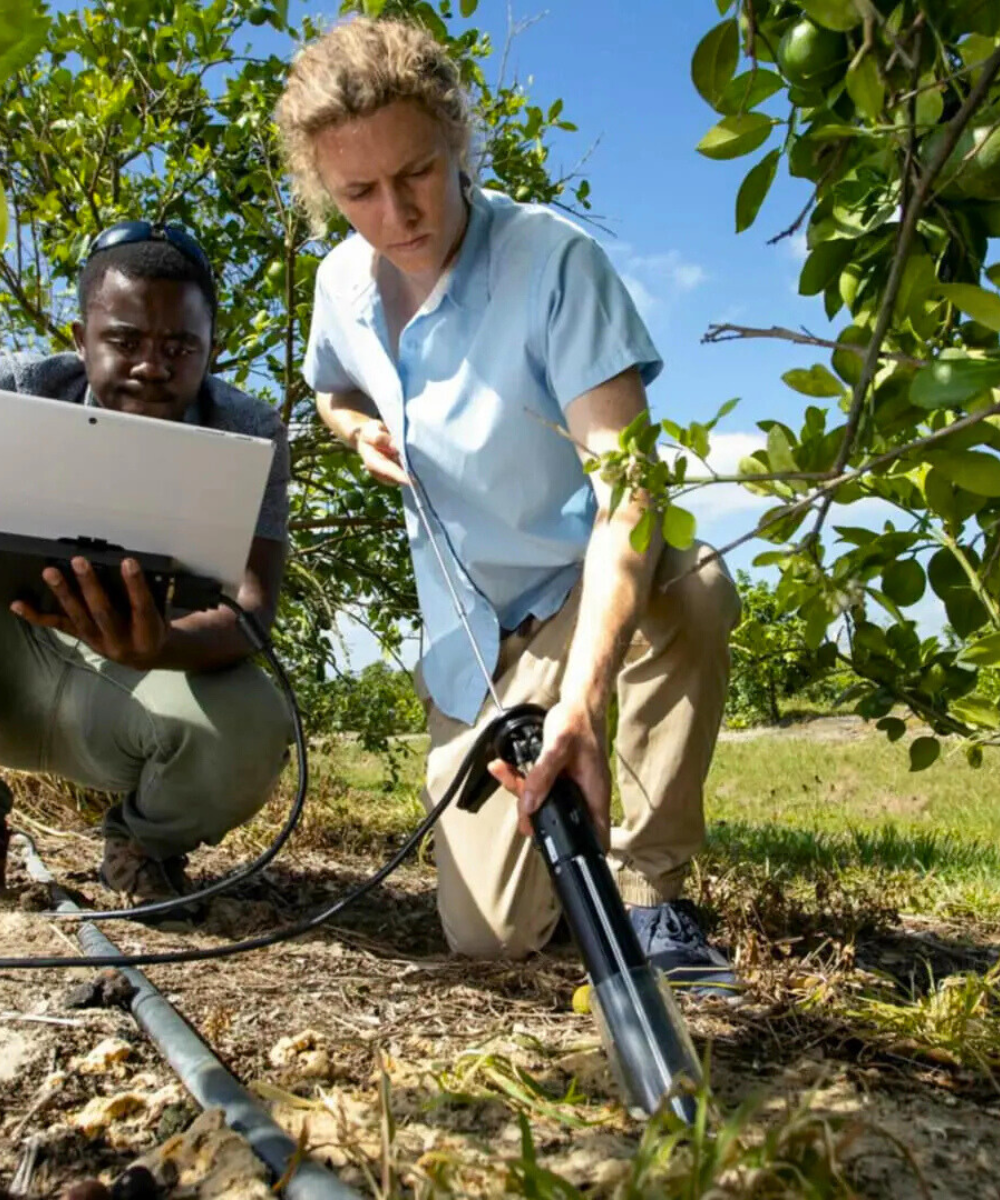

Yes, the CI-600 is designed for both field and laboratory use. It is portable and robust, making it suitable for outdoor conditions. The system can be easily transported and used to capture images directly in the field, allowing for long-term monitoring of root growth.

What kind of data can be collected with the CI-600?
The CI-600 captures high-resolution images of roots, which can be used to measure root length, diameter, volume, and distribution. These images provide detailed data for analysing root morphology, growth dynamics, and interactions with the soil and surrounding environment.

Is the CI-600 suitable for all types of plants?
Yes, the CI-600 can be used for a wide variety of plant species, from agricultural crops to trees and shrubs. It is particularly useful for studying plants in their natural soil environment, allowing for detailed root analysis across different species and soil types.

Does this product come with a warranty?
All CID Instruments come with a 12-month warranty from the point of sale. The warranty covers repairing and replacing defective parts of the instrument that were manufactured directly by CID Bio-Science. The warranty does not cover wear and tear, neglect, misuse, accidents, or excessive deterioration. Further, repair and alteration by an unauthorized party voids the warranty. More information can be found in the operation manual of your instrument.

Is the CI-600 waterproof?
The CI-600 is not designed to be waterproof and should not be used underwater. The CI-600 is designed to be water-resistant. Use in light rain is fine, however, there are electronics inside of the instrument that can be damaged by water, so it is not recommended to use the CI-600 during heavy rainfall. Furthermore, it should be noted that the tablet provided with the CI-600 is not waterproof and a waterproof case would need to be purchased for use in wet conditions.

What are the minimum and maximum operating temperatures?
You can use the CI-600 root imager in temperatures ranging from -5° C to 55° C.

What different types of researchers use the In-Situ Root Imager?
Crop, forestry, environmental, plant, climate, hydrology, and soil researchers all benefit enormously from the metrics that the In-Situ Root Imager provides.

Do I have to purchase RootSnap! separately?
No! RootSnap! software is free to all users of CID Bio-Science Root Imagers.

Click here to view the > BROCHURE

User Guide for CI-600 CID BioScience Digital Root Scanning and Imaging System

1. Installing Root Observation Tubes
Choose a location in the field or greenhouse where you want to study root growth. Insert the clear root observation tubes into the soil at the desired depth. Ensure the tubes are properly positioned for accurate scanning. Allow plants to grow naturally, with the root observation tubes in place for future scanning.

2. Preparing the CI-600 Scanner
Power on the CI-600 Digital Root Scanner.
Insert the scanner into the root observation tube, making sure it fits securely. The scanner will rotate inside the tube to capture a 360-degree image of the roots.

3. Capturing Root Images
Initiate the scan by pressing the "Start" button on the scanner or via the connected software interface.
The scanner will rotate and capture detailed images of the root system at various depths.
These images will be displayed on the connected device (laptop or tablet) in real-time.

4. Storing and Exporting Data
After the scan is complete, the images are automatically saved to the device’s internal memory or connected computer. Export the root images via USB or wireless connection for further analysis. Use the CID BioScience software to organise and analyse the root images, measuring root length, diameter, and distribution.

5. Analysing Root Data
The software allows users to process the captured images, enabling measurements of root growth dynamics, morphology, and biomass.
Track root growth over time by conducting regular scans, providing a long-term view of root development and plant health.

6. Maintenance and Cleaning
After use, remove the CI-600 from the observation tube and clean the external surfaces with a soft, dry cloth to prevent dirt and debris from affecting future scans.
Store the scanner in its protective case when not in use to ensure it remains in optimal working condition.

By following these steps, the CI-600 Digital Root Scanning and Imaging System will provide accurate, high-resolution root images, making it an essential tool for non-destructive root analysis in a variety of research and agricultural applications.
