Harvest Agri Ltd

AGRETO Agricultural Dynamic Weighbridge

AGRETO Agricultural Dynamic Weighbridge

PRICE ON REQUEST

➜ Click here to request pricing

Alternatively, please contact us on jingle@harvestagri.co.uk or +44 7984 018400 for enquiries or assistance.

View full details

About this product

Introducing the AGRETO Dynamic Weighbridge - the ultimate solution for efficient and accurate weight measurement in the agricultural sector and beyond. This advanced weighbridge has been designed to weigh trucks while they are in motion, providing real-time data without the need for manual intervention or personnel. Say goodbye to traditional weighing methods that demand time and labour and embrace a more innovative approach - at a fraction of the price of a static weighbridge!

One of the standout features of the AGRETO Dynamic Weighbridge is its capability to offer instant results. Drivers can easily monitor their load weight as they travel across the weighbridge. This level of transparency not only aids in compliance but also enhances operational efficiency.

Key benefits include:

  1. Comprehensive Record Keeping: Our weighbridge features full data storage capabilities, allowing for meticulous record-keeping. This ensures that all weight measurements are logged for future reference and compliance purposes.
  2. No Maintenance Required: Designed to be durable and robust, the AGRETO Dynamic Weighbridge requires no maintenance as all steel parts are hot-dip galvanised. Enjoy peace of mind knowing that you have a reliable weighing solution that can withstand daily demands.
  3. Full Installation Instructions Supplied: Specialised contractor not required.

The AGRETO Dynamic Weighbridge truly revolutionises how weight is measured in the field. With zero personnel needed for operation and accurate tracking capabilities, it enhances productivity while reducing operational costs. Investing in this weighbridge means investing in efficiency and accuracy for your business.

Click here to request pricing
More Information

Weigh everything that enters and leaves your farm

Almost everything on a farm, such as fertiliser, feed, grain, hay and straw, arrives or leaves by vehicle. Weighing those vehicles is the easiest way to record and check quantities. The AGRETO Dynamic Weighbridge does it while the vehicle keeps moving, so there is no stopping, no queuing and no manual recording.

Key features and benefits

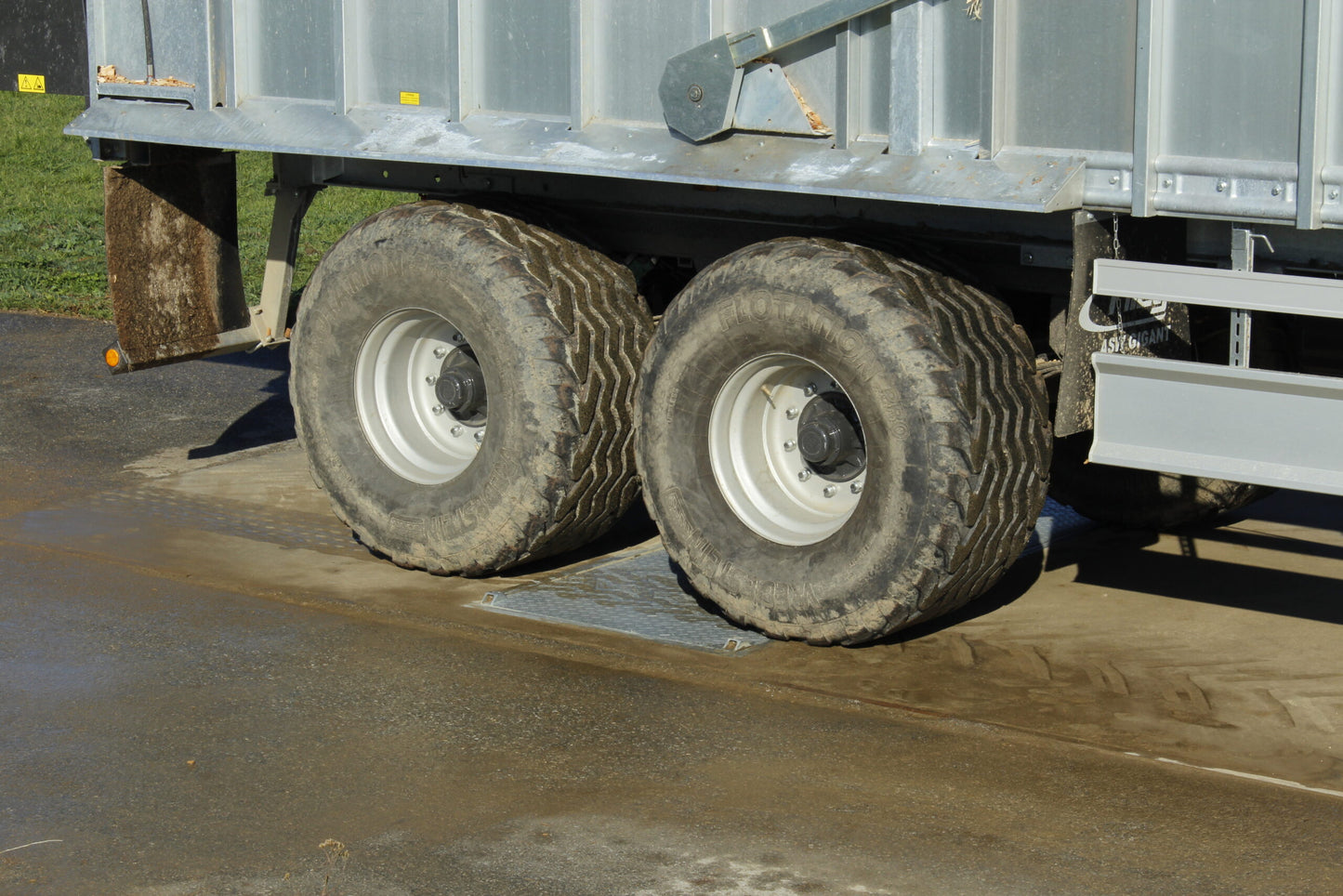

  • Weighs on the move: vehicles don't need to stop. They only need to drive at a reasonably consistent speed, without accelerating or braking.
  • Any vehicle, any rig: weighs any vehicle plus trailer combination, with any wheel size and any number or type of axle combination.
  • Accurate axle recognition: four-fold evaluation electronics record and analyse the weight at each corner of the platform separately. The system always knows where the wheels are, so large tractor rear tyres and all axle spacings are weighed accurately.
  • Unmanned weighing, 24/7: no operator is needed and there are no queues at harvest.
  • Automatic net weights: drivers can log on with a radio transmitter. The system links the vehicle data to the weighing, calculates net quantities, and can automate full and empty weighing.
  • Loss control: weighing everything in and out helps you track losses and check deliveries.
  • Remote logging: readings and camera images are logged on a PC in an office, which can be some distance from the weighbridge.
  • Optional cameras: add one or two video cameras for live video, vehicle identification and proof photos.
  • Easy to install and operate: the platform arrives prefabricated, and the foundation can largely be built yourself.
  • Cost-effective: a much cheaper alternative to a conventional calibrated weighbridge, both to buy and to run.
  • Software included: the PC management software is supplied with the system.
  • 5 year manufacturer's warranty.

Ideal for

  • Farms and agricultural contractors
  • Biogas plants
  • Grain stores and merchants
  • Axle load weighing in trade and industry

Please note

The AGRETO Dynamic Weighbridge is accurate, but it is a check weigher for in-house use. It is not approved for trade, because Weights and Measures rules require the load to be stationary.

Installation and foundation

  • AGRETO supplies detailed building instructions and a parts list for the foundation. Formwork, reinforcement and concrete are arranged on site, and only a little experience is needed.
  • The road on both sides of the platform must be paved, straight and level for the full length of the vehicle.
  • We recommend a concrete slab at least 3 m before and after the platform to prevent wheel ruts affecting accuracy.
  • Any slope must be consistent along the approach and exit, and the platform must be built to the same slope.
  • Once the concrete has hardened, the platform is lifted into the foundation and the accessories and cables are fitted. If you use the PC software, you'll need to provide a PC.

Your UK agent

Harvest Agri is the official UK agent for AGRETO and will do everything necessary to make sure you're completely satisfied. More than 100 AGRETO dynamic weighers are in daily use in Germany alone.

Specifications
  • Type: dynamic (drive-over) axle weigher
  • Platform size: 3.4 x 1 m (wider on request)
  • Weighing capacity: up to 20 tonnes per axle, with the axle weights added together to give the total rig weight
  • Vehicle spacing: allow about 10 seconds between vehicles
  • Weighing method: on the move, at a consistent speed with no acceleration or braking
  • Power supply: 240 V mains electricity
  • Software: PC management software included
  • Status: check weigher for in-house use, not approved for trade
  • Warranty: 5 years (manufacturer)

Platform versions

  • Prefabricated steel platform: 3.4 x 1 m, 700 kg. Foundation inner dimensions are 3.42 x 1.02 x 0.28 m.
  • Pre-assembled kit, concrete poured on site: 3.4 x 1 m, 2,800 kg including concrete. Foundation inner dimensions are 3.42 x 1.02 x 0.35 m.
  • In both versions, the weighing cells and cables are already fitted.

Installation versions

  • Installation kit for the foundation (edge protection frame and support plates)
  • C-profile frame for setting in concrete

Control versions

  • PC software: professional weighing data management. It covers master data management, dynamic, static and manual weighing, quality control, and weighing notes and lists. Accessories include a large display, printer, two cameras and remote control.
  • Weighing terminal: standard application. It does dynamic and static weighing, shows axle and vehicle weights, and prints weighing protocols. Accessories include a large display and printer.

Optional accessories

  • Big display: read results from the driver's seat, with scale status and wireless registration shown. Cable runs up to 100 m.
  • Cameras (one or two): automatic vehicle images, live video on the PC, vehicle identification and proof pictures. Cable runs up to 100 m.
  • Remote control: automatic weighing without tare weighing, pre-set information, and scale activation for authorised people only. Cable runs up to 100 m.
  • 2-key wireless transmitter: log on to the scale, identify the vehicle, and set two distinguishing features.
  • 12-key wireless transmitter: log on, identify the vehicle, set ten distinguishing features, and enter customer, field or article numbers.
Application

How It Works

Vehicle approaches. The driver approaches the platform at a steady speed and logs on with a radio transmitter if you're using automatic identification.

  1. Wheels cross the platform. The four weighing cells record each corner separately, so the position of every wheel is known.
  2. Axles are weighed. Each axle is weighed as it crosses, then the system adds them up to give the full rig weight.
  3. Data is logged. The weight, vehicle details and (if fitted) camera images are saved to the PC.
  4. Net weights are calculated. With a full and an empty weighing, the system works out the transported quantity automatically.
  5. Review and report. Use the PC software to check quality, print weighing notes and lists, and track what comes in and goes out of the farm.
